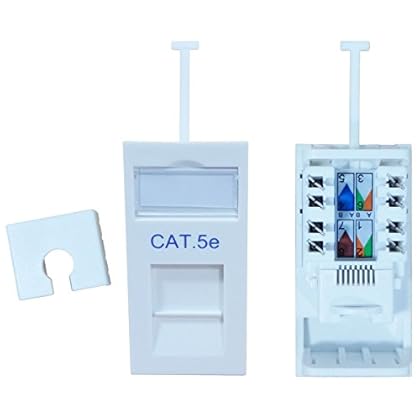

PACK OF 10 Cat5e UTP RJ45 Euro Module 25 x 50mm Data Outlet Comms Network LAN

Cat5e euro modules are suitable to fit both single and double gang face plates in various combinations i.e 2 x cat5e modules in a single gang face plate or 1 x module and 2 x half blanks in a single gang face plate. Specification • High performance. Meets TIA/EIA-568-B and ISO 11801 specifications. • Easy to terminate. The high-density IDC blocks are compatible with industry standard BT/Krone termination tooling (available separately). • Effective cable management via cable management loops and cable ties (supplied). • Versatile. Colour coded for both T568A and T568B wiring. • Clear port identification, achieved by user defined marking pads behind a hinged, transparent label holder. RJ45 Socket: 50 micro inches gold plating over nickel. Phosphor Bronze contacts. Plastic housing material: ABS / PC. IDC Contacts: Extra hard Phosphor Bronze contacts, IDC Plastic Material: UL94V-2 PC. Toleranced to accept 22 - 26 AWG wiring, stranded or solid. Durability: Rj45: 750 insertions and withdrawals at 20 cycles per minute. IDC: 199 Re-terminations Technical Specification RJ45 Socket: 50 micro inches gold plating over nickel. Phosphor Bronze contacts. Plastic housing material: ABS / PC IDC Contacts: Extra hard Phosphor Bronze contacts IDC Plastic Material: UL94V-2 PC. Toleranced to accept 22 - 26 AWG wiring, stranded or solid. Durability: Rj45: 750 insertions and withdrawals at 20 cycles per minute. IDC: 199 Re-terminations.




Buy PACK OF 10 Cat5e UTP RJ45 Euro Module 25 x 50mm Data Outlet Comms Network LAN at amazon
